Standalone Controller
Runs the control application locally using its own digital and analog I/O, allowing the system to keep operating even without SCADA, cloud or broker connectivity.
01 / LOCAL CONTROLIndustrial Control Platform
AI-PLC Core for modern embedded and industrial automation.
A compact platform that combines Core Runtime, Core API and Core SDK with industrial I/O and the Loong Socket ESP32-S3 module. Designed for machine builders, OEM integrations and advanced edge-control applications.
Core RuntimeAPI + SDKLoong Socket ESP32-S3
DIN-rail industrial controllerLoong Socket ESP32-S3 platform · Core Runtime · Core API + SDK
24 VDCIndustrial control supply
7 DIDigital inputs
7 DORelay outputs
4 AI4–20 mA inputs
2 AO4–20 mA outputs
ModbusRTU / TCP + Wi-Fi
Operating Modes & FeaturesOne platform, multiple
One platform, multiple
industrial operating modes.
AI-PLC Core is more than a compact controller. It can run local control, expose remote I/O, generate Modbus RTU and TCP requests, simulate a Modbus device map, bridge data to MQTT-based systems, support future OPC UA interoperability and be developed in a modern VS Code and ESP-IDF workflow. The ESP32-S3 platform also provides hardware headroom for future TinyML / Edge AI functions.
Remote I/O
Acts as a compact remote I/O node, exposing local digital and analog signals to external controllers, PLCs, HMIs or SCADA systems.
02 / REMOTE I/OModbus Gateway
Creates its own Modbus RTU Master and Modbus TCP Client requests to acquire data from external industrial devices and integrate them into the platform.
03 / MODBUS GATEWAYModbus Device Simulator
Can emulate a configurable virtual Modbus map with coils, discrete inputs, holding registers and input registers for HMI, SCADA, testing and commissioning workflows.
04 / SIMULATORMQTT / Edge Gateway
Publishes local data and Modbus-acquired variables to MQTT-based SCADA, edge and cloud applications, enabling lightweight industrial data integration.
05 / MQTT EDGEVS Code Development
Application development is performed in Visual Studio Code, giving users a modern and familiar workflow for building and maintaining industrial applications.
06 / VS CODEESP-IDF + Core API
Built around Espressif IDF and programmed through the AI-PLC Core API + SDK, combining low-level platform power with a higher-level application model.
07 / IDF + APIOPC UA Ready
Architecture prepared for future OPC UA connectivity to expose structured process data, variables and diagnostics to industrial SCADA and interoperability platforms. Core OPC UA software support is planned and is not yet implemented.
08 / OPC UATinyML / Edge AI Ready
The ESP32-S3 with 8 MB PSRAM is prepared for future on-device inference, diagnostics and anomaly-detection workloads. Core software support is planned and is not yet implemented.
09 / AI READYDIN-Rail Enclosure
Designed for installation inside a standard DIN-rail cabinet enclosure. Approx. enclosure dimensions: 159 × 90 × 58 mm, for mounting on a standard 35 mm DIN rail.
10 / DIN-RAILArchitecture
The product value is in the platform stack and deployment flexibility.
AI-PLC Core is defined by its own runtime, API and SDK. The Loong Socket module provides the compute foundation, while AI-PLC Core adds the software stack, the flexibility to work as a standalone controller, remote I/O node, Modbus gateway, simulator or MQTT edge device, a development workflow based on Visual Studio Code and Espressif IDF, planned OPC UA interoperability, and hardware capability for future TinyML / Edge AI workloads. OPC UA and TinyML / Edge AI Core software support are planned and not yet implemented.
Own Core Runtime for platform execution and control services.
Core API for structured software access to features and services.
Core SDK for application development, integration and productization.
Loong Socket ModuleESP32-S3 compute platform
USB-C · Wi-Fi · BLE · PSRAM
USB-C · Wi-Fi · BLE · PSRAM
→
AI-PLC Core RuntimePlatform execution, services, integration logic and resource abstraction.
→
Core API + Core SDKDeveloper interface and application toolkit for extending the platform.
Industrial I/O Layer24 V digital I/O, 4–20 mA analog I/O and field interfaces.
ApplicationsStandalone control, remote I/O, gateway, simulation and edge integration.
Embedded Processing PlatformBuilt on the Loong Socket
Built on the Loong Socket
ESP32-S3 module platform.
LS-W1-1119-38P-S3-A00
AI-PLC Core uses the Loong Socket module platform as its embedded controller foundation. This gives the platform a compact footprint, native USB-C, Wi-Fi / BLE connectivity and a rich hardware base for advanced industrial and embedded applications.
Visit loongsocket.comESP32-S3-WROOM-1U-N16R8Dual-core Xtensa LX7 up to 240 MHz with external antenna option.
16 MB FlashLarge application and data storage for embedded control workloads.
8 MB PSRAMExtra memory headroom for buffers, connectivity stacks and advanced applications.
USB-C NativePower, programming, Serial/JTAG and data through the native USB interface.
Loong Socket
Module platformESP32-S3
Compact compute base
Module platformESP32-S3
Compact compute base
I/O Overview
Industrial I/O in a compact form factor.
The AI-PLC Core platform combines compact hardware with practical industrial signal interfaces for cabinet automation, distributed control and machine-level integration.
7 DIDigital Inputs24 V isolated input channels for sensors, contacts and field signals.
7 DORelay OutputsRelay outputs for direct switching of loads and machine control signals.
4 AIAnalog Inputs4–20 mA measurement channels for transmitters and process variables.
2 AOAnalog Outputs4–20 mA control outputs for command signals and analog actuation.
Platform Summary
PlatformAI-PLC Core industrial control platform.
Processing BaseLoong Socket LS-W1-1119-38P-S3-A00 module platform.
Software StackCore Runtime, Core API and Core SDK.
CommunicationsModbus RTU, Modbus TCP, MQTT and Wi-Fi. OPC UA integration is planned.
Operating ModesStandalone controller, remote I/O, Modbus gateway, Modbus simulator and MQTT / edge gateway.
DevelopmentDeveloped in Visual Studio Code using Espressif IDF together with the AI-PLC Core API + SDK.
OPC UAPlanned Core integration for structured industrial data exchange, SCADA connectivity and interoperability. Not currently implemented.
TinyML / Edge AIHardware-ready on the ESP32-S3 platform for future on-device inference and diagnostics. Core software support is planned and not currently implemented.
Gateway FunctionsCan create Modbus RTU master and Modbus TCP client requests to read or exchange data with external industrial devices.
SimulationCan emulate a configurable Modbus device map for testing, HMI, SCADA and commissioning scenarios.
EnclosureApprox. 159 × 90 × 58 mm DIN-rail enclosure.
MountingStandard 35 mm DIN rail for industrial control cabinets.

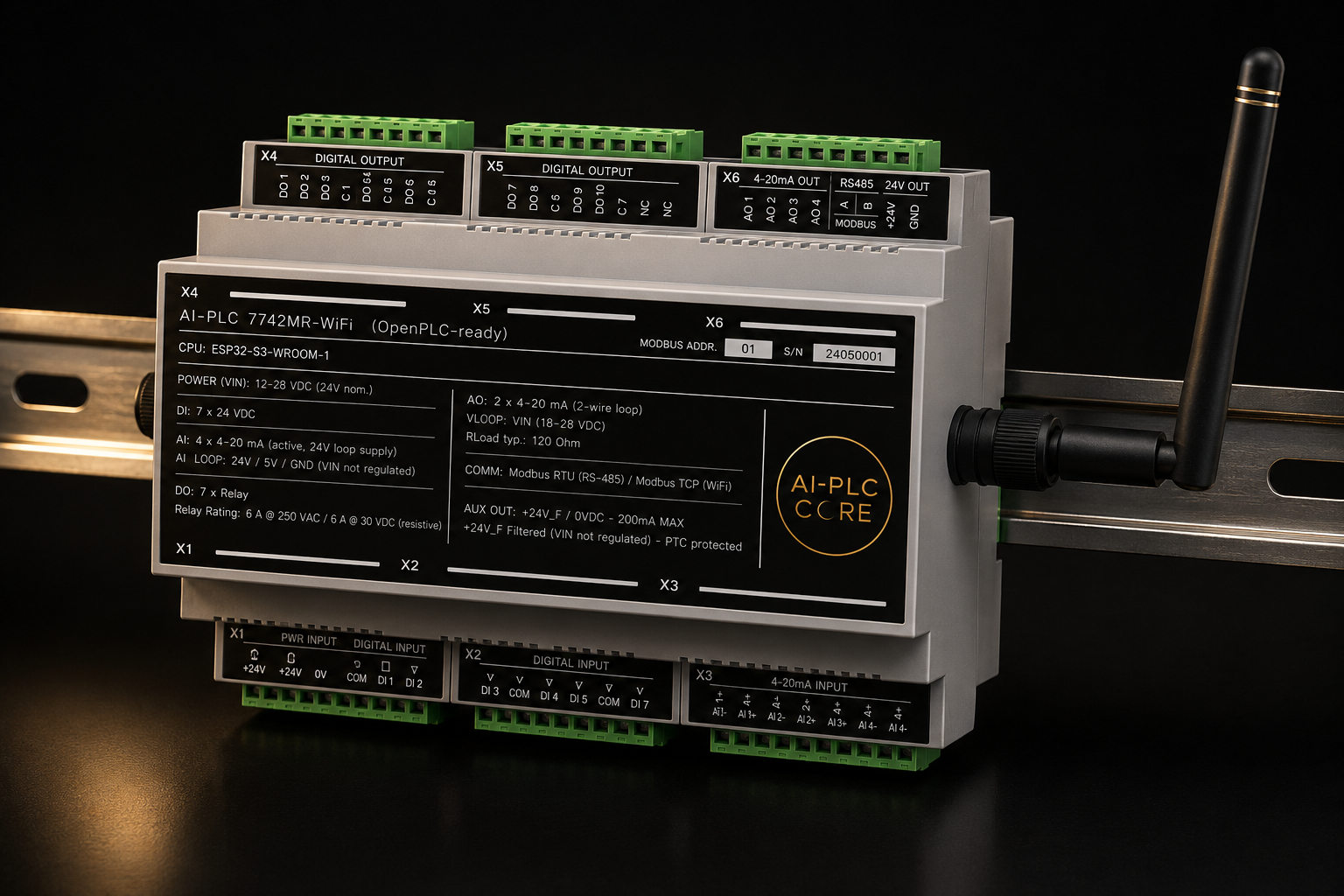

Product PresentationPhotorealistic DIN-rail controller render integrated into the product page.
Target UseCompact automation, machine control, protocol bridging, remote monitoring and industrial edge applications.
